Invites you to a new frontier with road bikes.

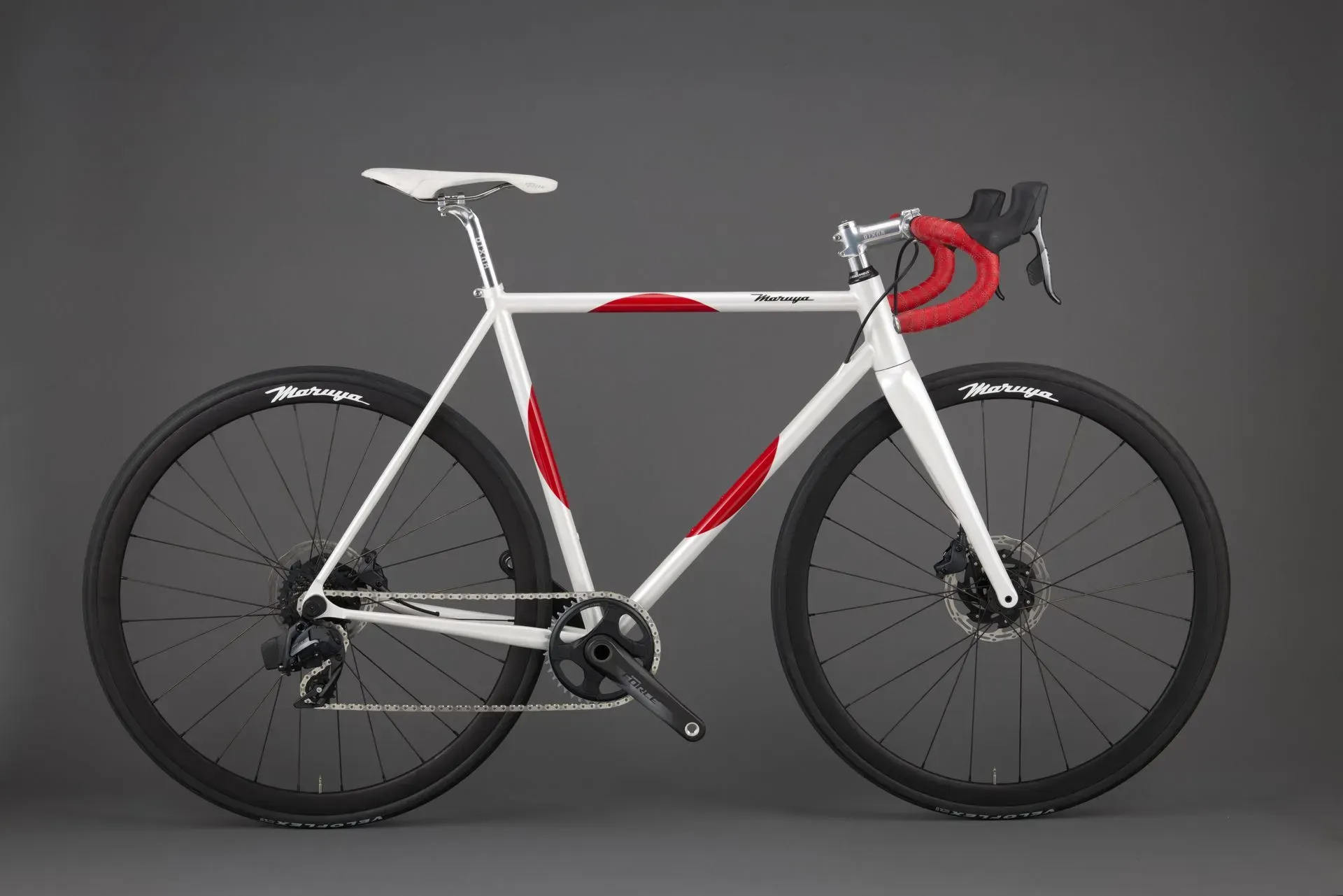

TAKERU-Z, with a simple traditional design of pearl white and red.
Its simplicity and elegant design create a harmonious presence even on sophisticated urban streets and idyllic country roads.
We are also pursuing the best balance in terms of technical aspects.

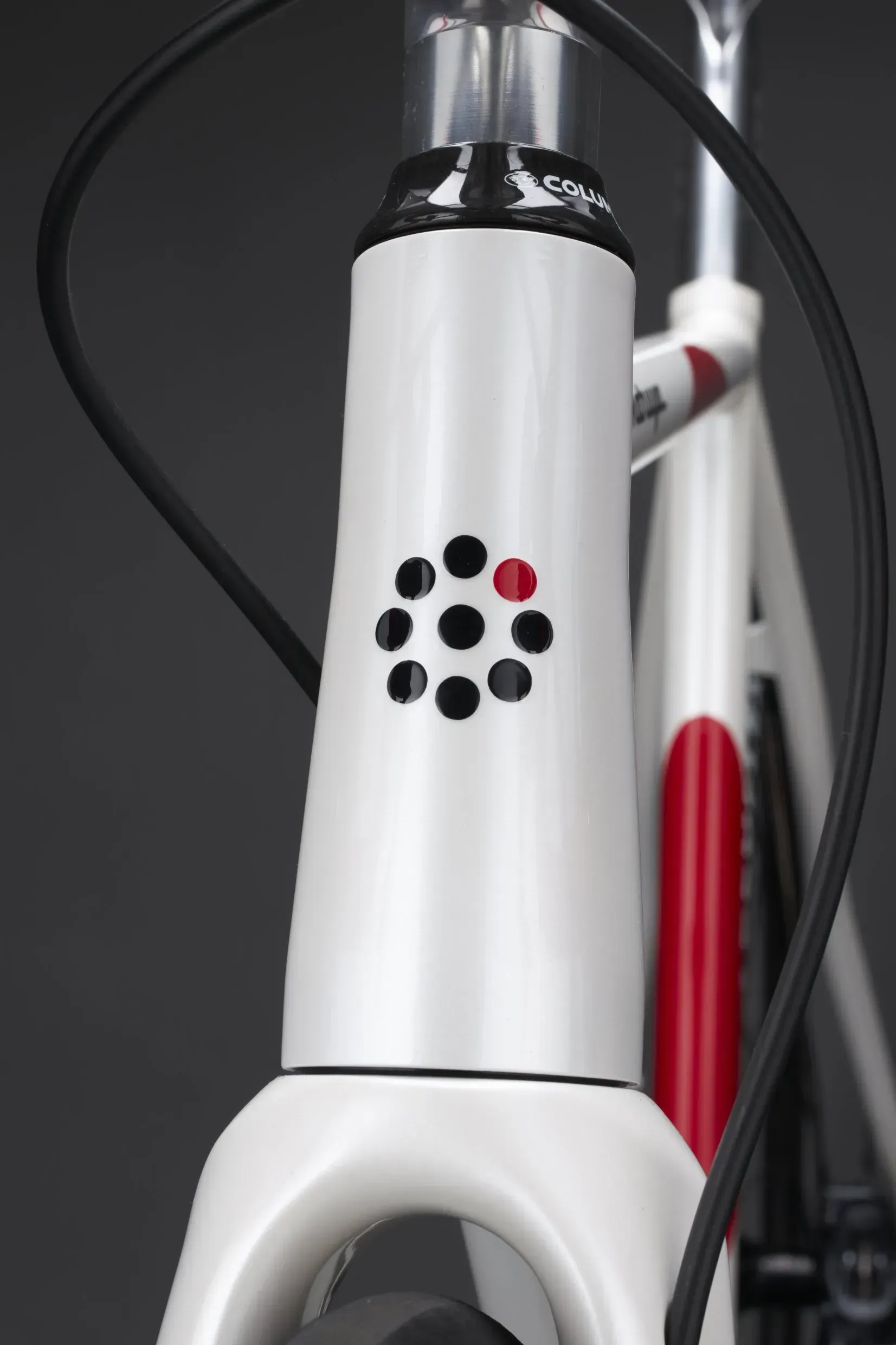

The combination of a Columbus tapered head and a Columbus Futura Disk enhances rigidity, while the vented Columbus Zona is used for the chain stay and seat stay to enable a soft ride.
In addition, by sticking to the selection and configuration of the tube, the conflicting
factors of rigidity and weight reduction are eliminated.

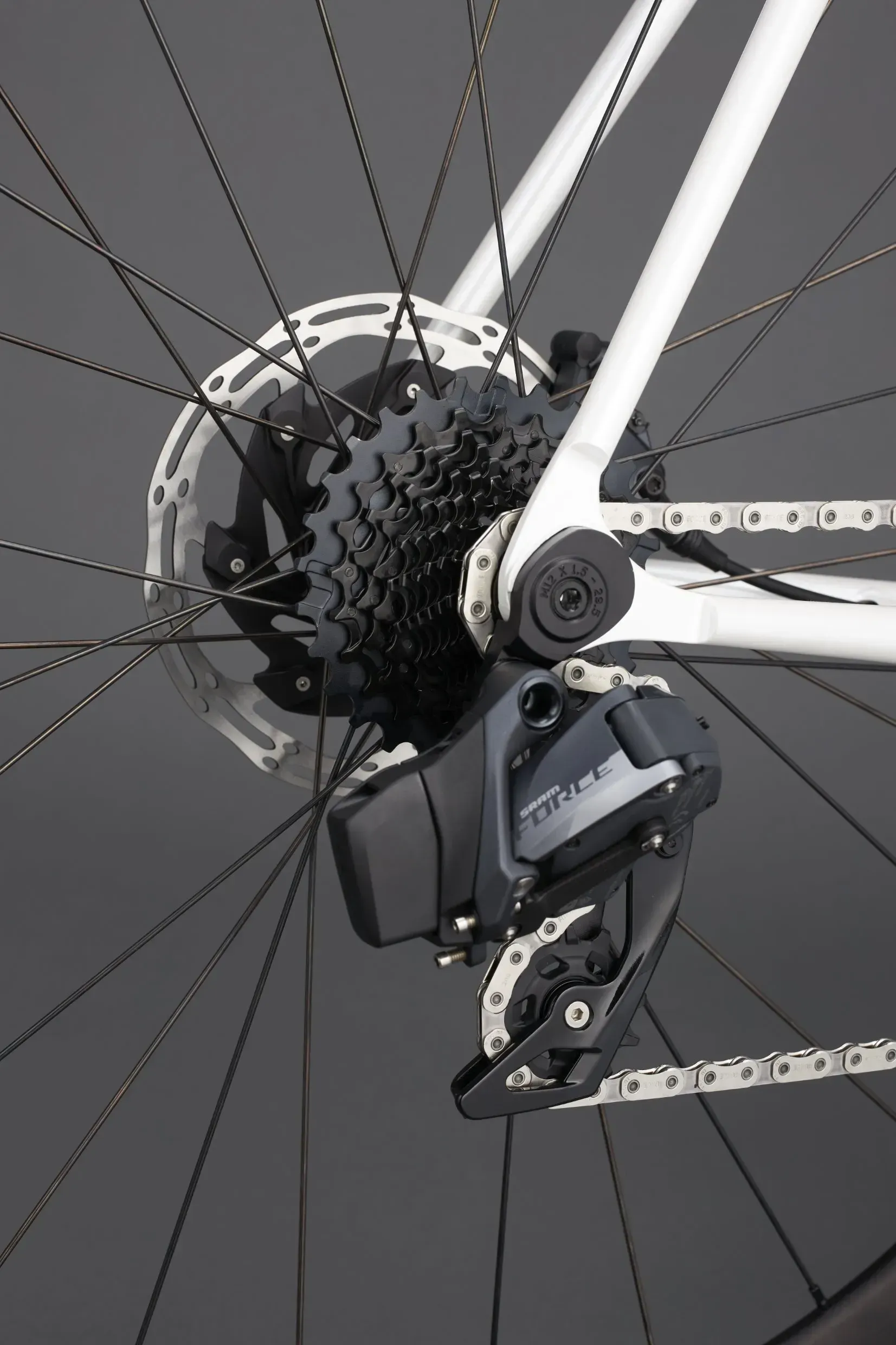

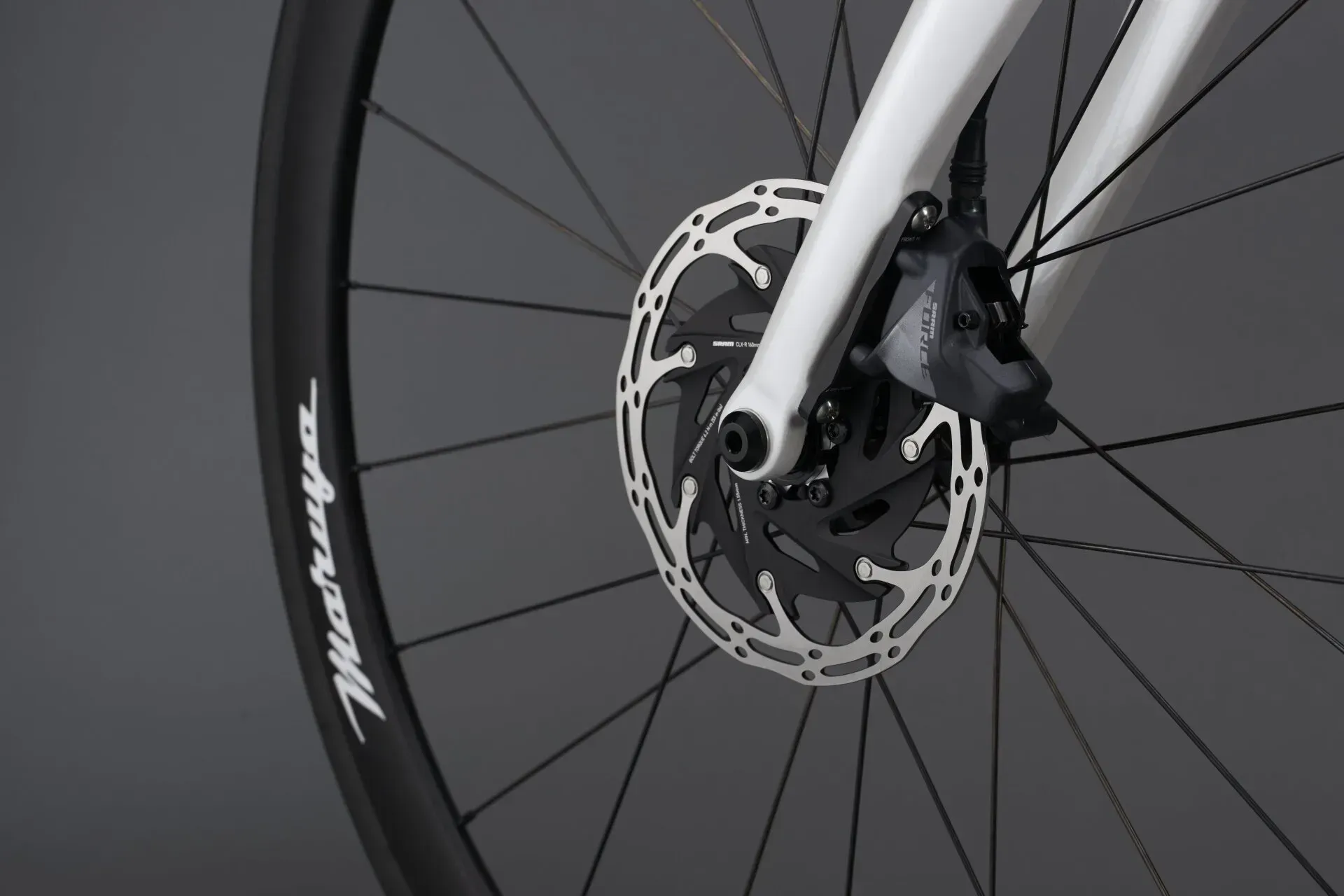

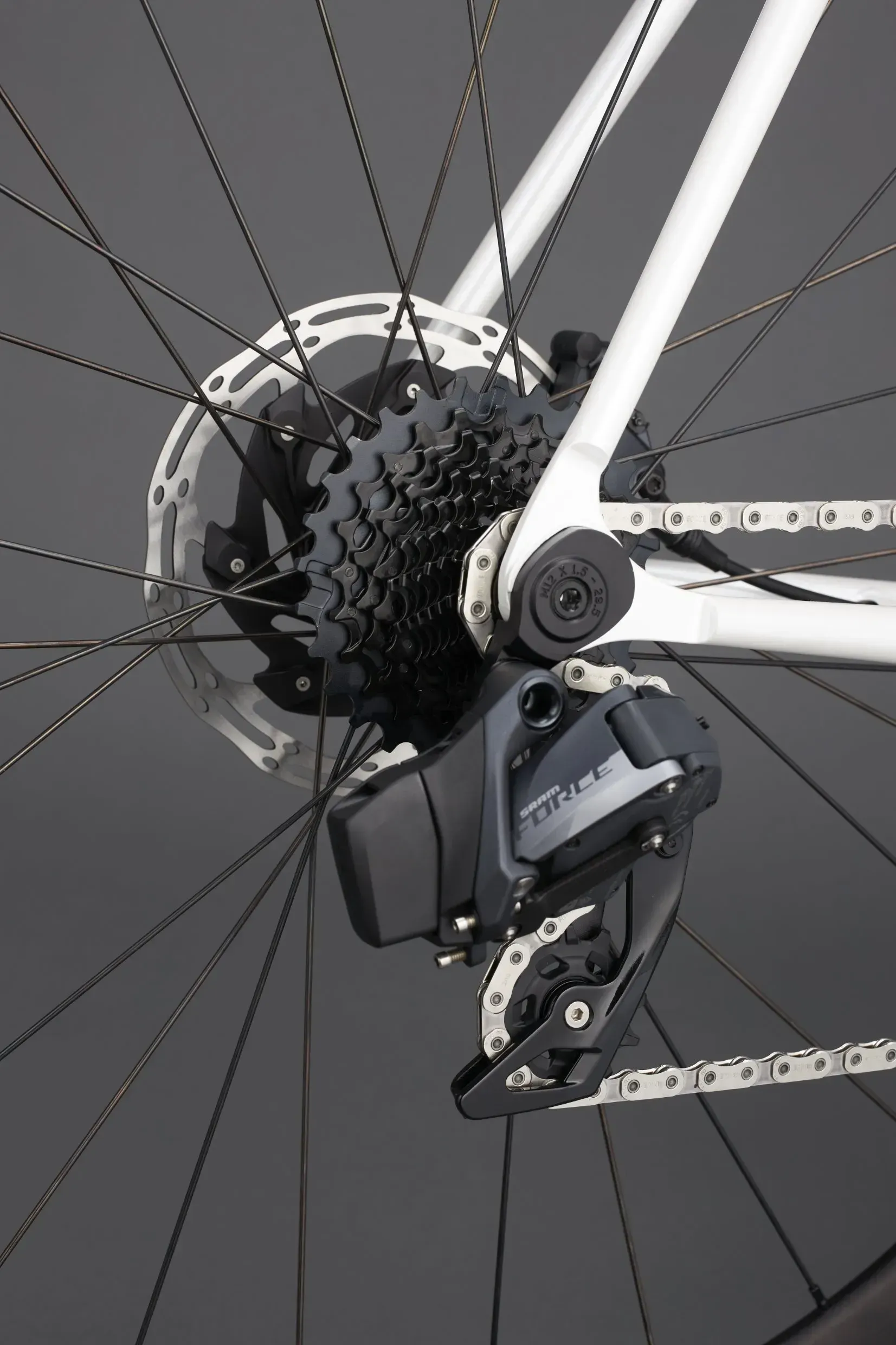

Furthermore, the strong braking force of the disc brakes makes it possible for the rider to handle all road surfaces and weather. By responding to such conditions, it enhances safety and reduces fatigue.
TAKERU-Z invites you to a new frontier with road bikes.
SPEC
Frame Set : Frame/Fork/Headsets
Tube :
Maruya original mix (Columbus & KAISEI)
Fork : Columbus Futura Disc
Headsets : Columbus
Seat Post :
φ27.2mm
BB :
BSA 68mm
Main Colors :
Pearl white & Red
Delivery Time :
about 4 months
| XL | L | M | S | XS | |||
|---|---|---|---|---|---|---|---|
| A | Frame Size(C-C) *C-T:+18mm | mm | 562 | 542 | 527 | 507 | 482 |
| B | Top Tube Effective | mm | 575 | 555 | 540 | 525 | 510 * Sloping-15mm |
| C | Head Tube | mm | 159 | 142 | 129 | 110 | 105 |
| D | Head Angle | degree | 73°00' | 73°00' | 72°50' | 72°2' | 71°8' |
| E | Seat Angle | degree | 73°50' | 74°00' | 74°00' | 74°50' | 75°00' |
| F | Offset | mm | 45 | 45 | 45 | 45 | 45 |
| G | Front center | mm | 609 | 595 | 584 | 571 | 564 |
| H | Rear Center | mm | 420 | 420 | 415 | 415 | 415 |
| I | Bottom Bracket Drop | mm | 72 | 70 | 70 | 69 | 68 |
| k | Recommended Inseam | cm | 86-93 | 85-87 | 80-86 | 79-81 | 70-80 |
| Recommended Height | cm | 185-195 | 180-188 | 175-183 | 166-178 | 155-167 |
